Powering the Drone Revolution: IP68 Connectors for UAV Charging Stations

Commercial drones (UAVs) are transforming industries from land surveying and pipeline inspection to emergency response and automated delivery. The key to scaling these drone operations is autonomy, which relies entirely on drone-in-a-box solutions and automated outdoor charging pads.

Because these charging stations are permanently installed outdoors and operate without human intervention, their internal and external electrical connections must be flawless. For UAV infrastructure engineers, PINA GUARD injection-molded M8 and M12 waterproof connectors provide the compact, heavy-duty reliability required to keep drone fleets in the sky.

The Engineering Challenge of Drone Infrastructure

Automated drone landing pads are highly complex robotic systems exposed to the elements 24/7. The cables powering their retractable roofs, weather sensors, and high-voltage charging contacts face several critical threats:

• Extreme Weather Exposure: Landing pads are installed on exposed rooftops and remote fields, subjecting connections to driving rain, snow buildup, and intense UV radiation.

• Mechanical Shock and Vibration: The physical impact of a drone landing, coupled with the motorized movement of the charging bay doors, creates constant vibration that can shake standard screw-terminals loose.

• Strict Space Constraints: The internal housing of a drone charging box is packed with electronics, leaving very little room for bulky wiring harnesses.

Why UAV Engineers Choose PINA GUARD

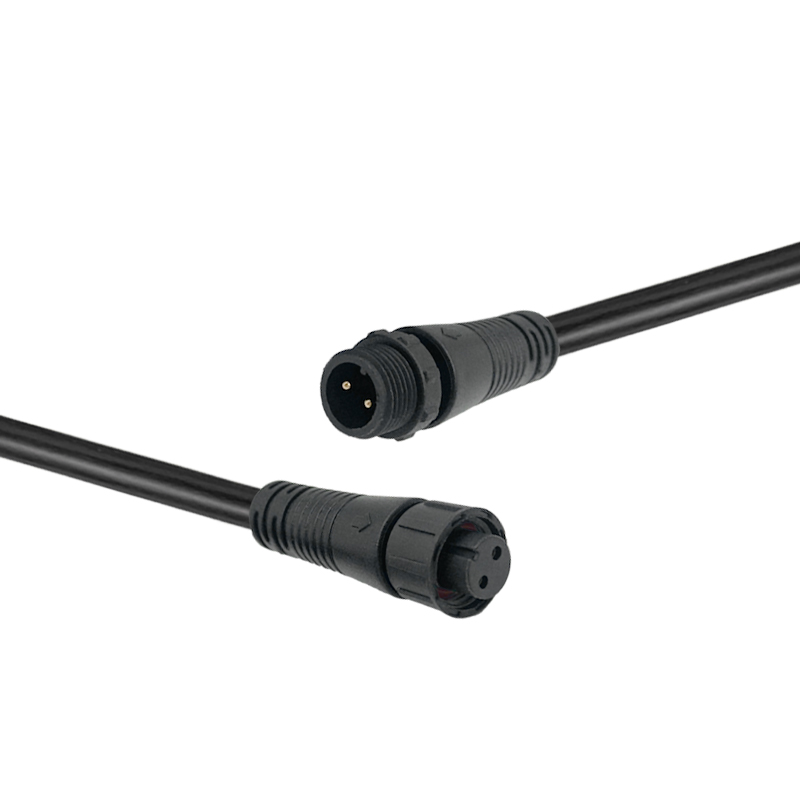

1. Compact M8 and M12 Overmolded Profiles PINA GUARD specializes in overmolding the miniature M8 and M12 connector series. Our injection-molded designs provide high-density pin layouts in a sleek, low-profile footprint. This allows engineers to route complex data and power lines cleanly through the tight internal channels of a drone charging station without sacrificing IP68 weather protection.

2. Soldered Internals for Vibration Immunity A drone charging station cannot afford a disconnected sensor. Underneath our protective injection-molded shell, PINA GUARD utilizes a strict 100% soldered manufacturing process. We metallurgically fuse the copper wire directly to the contact pin. This guarantees that the vibrations from motorized bay doors or heavy drone landings will never interrupt the power or data flow to the central controller.

3. Factory-Sealed IP68 Reliability The injection molding process physically fuses the connector housing to the cable jacket, creating a monolithic seal. This eliminates the vulnerability of mechanical O-rings and threaded nuts. When a PINA GUARD cable assembly is exposed to a severe rainstorm on an open landing pad, the sensitive charging electronics remain completely dry and fully operational.

Maximize Fleet Autonomy

The success of automated drone networks depends on the reliability of the ground infrastructure. Engineer risk out of your UAV charging stations by integrating the compact, vibration-proof, and weather-defying strength of PINA GUARD injection-molded waterproof connectors.

Explore our catalog of overmolded M8 and M12 series connectors, or contact our OEM team for custom cable assemblies tailored to your drone infrastructure.
