Introduction
In the era of Industry 4.0 and IoT (Internet of Things), the demand for reliable electrical connectivity in harsh environments has never been higher. From automated production lines and outdoor 5G base stations to electric vehicle charging systems and marine engineering equipment, connectors play a critical role in ensuring uninterrupted operation. Among various connector types, M9 waterproof connectors have emerged as a preferred choice for many industrial applications due to their compact design, excellent waterproof performance, and versatile functionality. This article explores the core features, technical specifications, key applications, and market trends of M9 waterproof connectors, highlighting their importance in modern industrial ecosystems.
Core Features of M9 Waterproof Connectors
M9 waterproof connectors are defined by their 9mm diameter housing, which enables them to fit into space-constrained installations without compromising performance. Their core features include:
Superior Waterproof & Dustproof Performance
Most M9 waterproof connectors achieve IP67 or IP68 protection ratings when mated, meaning they can withstand prolonged immersion in water (up to 1.5 meters for IP67) and complete dust tightness . This makes them suitable for use in humid, dusty, or oil-rich environments such as factory floors, outdoor sensor arrays, and automotive assembly lines, where common connectors would fail due to environmental intrusion.
Compact Design & Versatile Pin Configurations

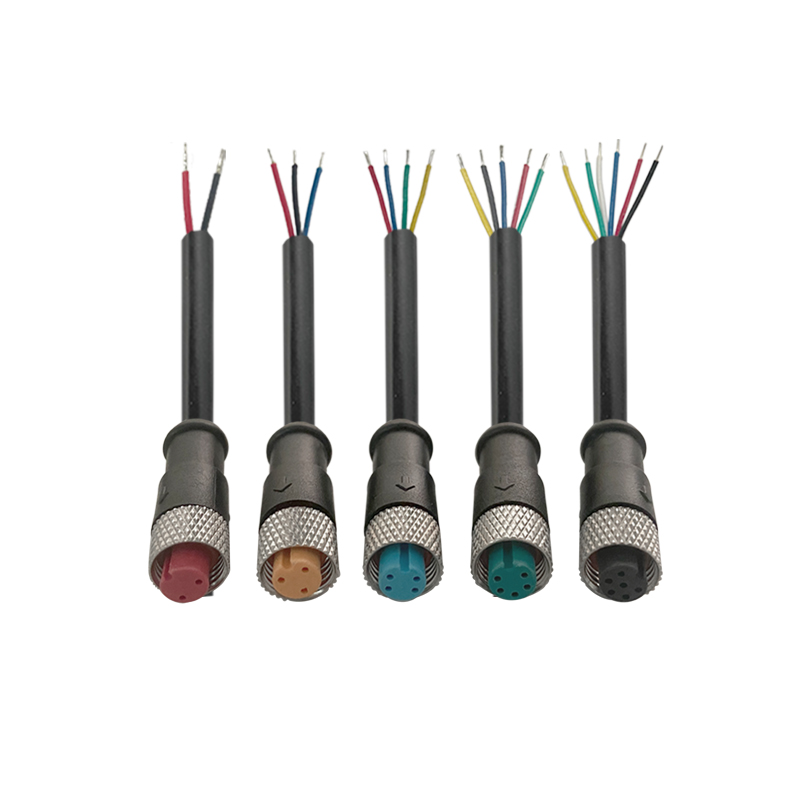

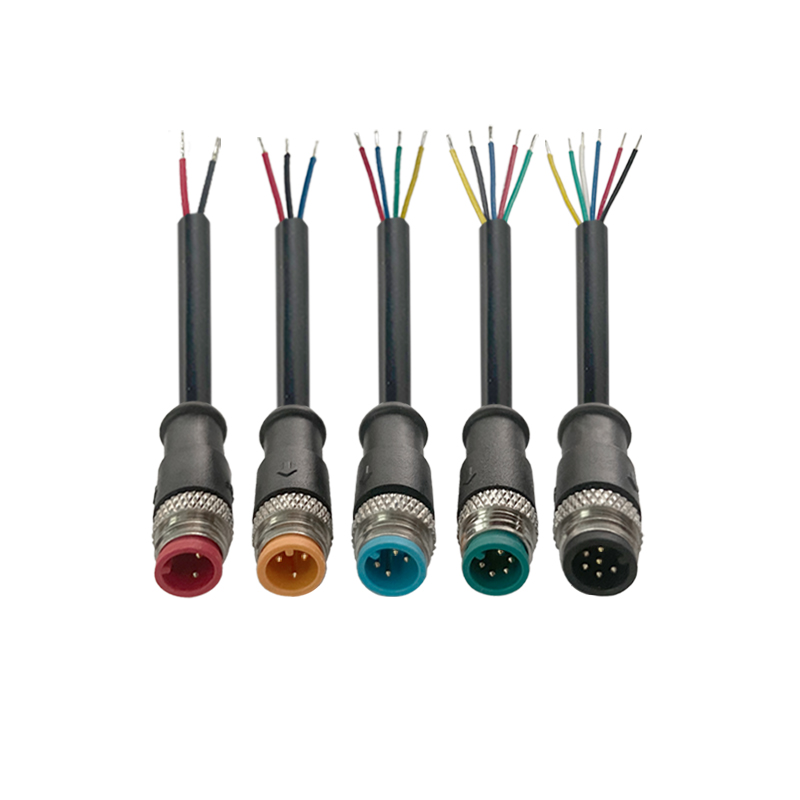

With a small form factor, M9 connectors are perfect for applications with limited space, such as compact sensors, miniature actuators, and portable electronic devices. They are available in 2 to 9 pin configurations, catering to different signal and power transmission requirements . The 9-pin M9 connectors, in particular, are widely used in equipment that requires multiple signal channels, featuring a D-shaped pin arrangement for precise alignment and anti-misconnection .
Rugged Construction & Long Service Life
The housing of M9 waterproof connectors is typically made of nickel-plated brass or high-performance engineering plastics (PA66+GF), providing excellent resistance to mechanical impact, vibration, and corrosion . The contacts are usually gold-plated copper alloy, which enhances conductivity, reduces contact resistance, and improves anti-corrosion performance . These connectors can withstand more than 500 mating cycles, ensuring long-term reliability in high-frequency connection scenarios .
Wide Temperature & Electrical Compatibility
M9 waterproof connectors operate within a wide temperature range of -40°C to 85°C, adapting to extreme weather conditions and high-temperature industrial environments . Electrically, they support rated voltages up to 125V and rated currents up to 4A, making them suitable for both signal transmission (e.g., sensor data) and low-power power supply applications . Additionally, many models feature shielding capabilities to minimize electromagnetic interference (EMI), ensuring stable signal transmission in complex electrical environments .
Easy Installation & Secure Locking
M9 waterproof connectors adopt a threaded locking mechanism, which provides a secure and vibration-resistant connection, preventing accidental disconnection during operation . They support various termination methods, including soldering and crimping, allowing for flexible installation in different scenarios . Some models also offer panel-mount and cable-mount options, further expanding their application scope .
Key Applications of M9 Waterproof Connectors
The combination of compact size, waterproof performance, and reliability makes M9 waterproof connectors suitable for a wide range of industries and applications:
Industrial Automation
In industrial automation systems, M9 waterproof connectors are widely used to connect sensors, actuators, proximity switches, and encoders . They withstand the harsh conditions of factory floors, including oil splashes, coolant exposure, and constant vibration, ensuring accurate data transmission between control systems and field devices. Their compact design is particularly advantageous in crowded control cabinets and small-scale automation components.
Automotive Electronics
The automotive industry relies on M9 waterproof connectors for various applications, such as automotive production line equipment, on-board sensors, and electric vehicle (EV) auxiliary systems . They resist the high humidity, temperature fluctuations, and chemical exposure common in automotive environments, ensuring reliable operation of critical systems. With the growth of EVs, M9 connectors are also being used in charging system accessories and battery management modules.
Telecommunications & 5G Infrastructure
Outdoor 5G base stations, telecom towers, and remote communication equipment require connectors that can withstand rain, wind, and extreme temperatures. M9 waterproof connectors provide the necessary protection for signal transmission in these outdoor telecom applications, supporting the stable operation of 5G networks . Their small size also helps reduce the overall weight and space requirements of base station equipment.
Renewable Energy Systems
In renewable energy applications such as solar photovoltaic (PV) systems and wind turbines, M9 waterproof connectors are used in monitoring equipment, inverter systems, and sensor networks . They can withstand outdoor weather conditions, including UV radiation, rain, and snow, ensuring long-term reliability in energy generation facilities. As the global push for clean energy intensifies, the demand for M9 connectors in this sector is expected to grow significantly.
Marine & Offshore Engineering
Marine environments are highly corrosive due to saltwater and high humidity. M9 waterproof connectors with corrosion-resistant materials (e.g., stainless steel housings) are used in marine sensors, navigation systems, and offshore oil drilling equipment . Their IP68 protection rating ensures they can withstand prolonged immersion in saltwater, making them essential for offshore operations.
Medical & Wearable Devices
In medical equipment such as portable diagnostic devices and wearable health monitors, M9 waterproof connectors are used for their compact size and waterproof performance . They enable reliable connectivity in devices that may come into contact with water (e.g., waterproof fitness trackers) or require sterilization, supporting the development of remote healthcare solutions.
Market Trends & Future Outlook
The global waterproof connector market is experiencing steady growth, driven by the expansion of industrial automation, 5G infrastructure, electric vehicles, and renewable energy sectors . According to industry reports, the global high-protection grade (IP67 and above) waterproof connector market size reached 48.6 billion US dollars in 2023 and is expected to exceed 65 billion US dollars by 2025, with a compound annual growth rate (CAGR) of 15.7% . M9 waterproof connectors, as a key segment of this market, are poised to benefit from several emerging trends:
Miniaturization & Integration
As electronic devices become increasingly compact, there is a growing demand for smaller connectors that can integrate multiple functions (e.g., signal transmission, power supply, and shielding). M9 waterproof connectors, with their small form factor and versatile pin configurations, are well-positioned to meet this demand .
High-Performance Material Adoption
Manufacturers are increasingly using advanced materials such as high-temperature resistant fluororubber,环保型硅胶 (environmentally friendly silica gel), and nickel-plated stainless steel to enhance the performance of M9 connectors . These materials improve corrosion resistance, temperature tolerance, and durability, expanding the application scope of M9 connectors to more extreme environments.
Customization & Modular Design
With the diversification of industrial applications, there is a rising demand for customized M9 waterproof connectors. Manufacturers are offering modular designs that allow for easy configuration of pin counts, termination methods, and housing materials, enabling customers to tailor connectors to their specific needs . Modular M9 connectors also simplify maintenance and replacement, reducing downtime in industrial operations.
Growth in Emerging Markets
亚太地区 (Asia-Pacific) is expected to be the largest market for M9 waterproof connectors, accounting for over 45% of global market growth . This is driven by massive investments in infrastructure, 5G deployment, and electric vehicle production in countries such as China, India, and Southeast Asian nations. North America and Europe are also significant markets, with demand fueled by industrial automation and renewable energy projects .
Conclusion
M9 waterproof connectors are indispensable components in modern industrial and electronic systems, offering a unique combination of compact design, excellent waterproof performance, and reliable connectivity. Their ability to operate in harsh environments makes them suitable for a wide range of applications, from industrial automation and automotive electronics to renewable energy and telecom infrastructure. As global industries continue to digitize and adopt new technologies, the demand for M9 waterproof connectors is expected to grow, driven by trends such as miniaturization, material innovation, and customization. For businesses seeking reliable connectivity solutions in harsh environments, M9 waterproof connectors provide a cost-effective and high-performance option that supports long-term operational efficiency.
